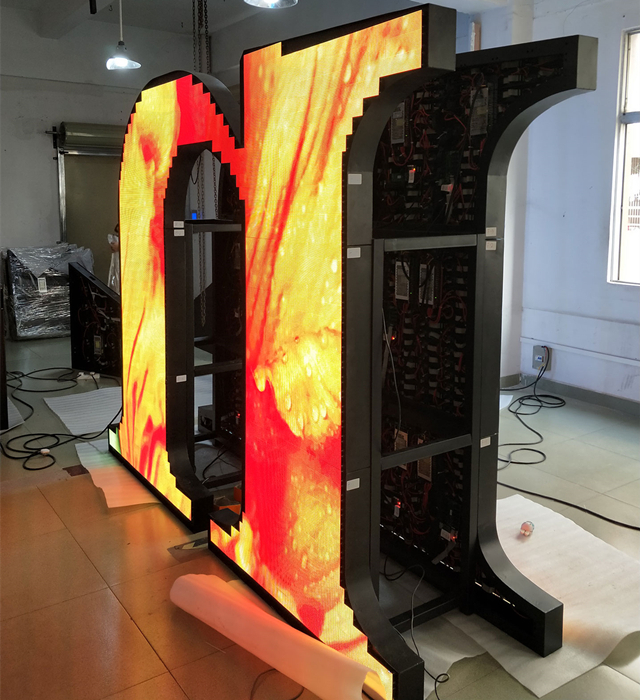

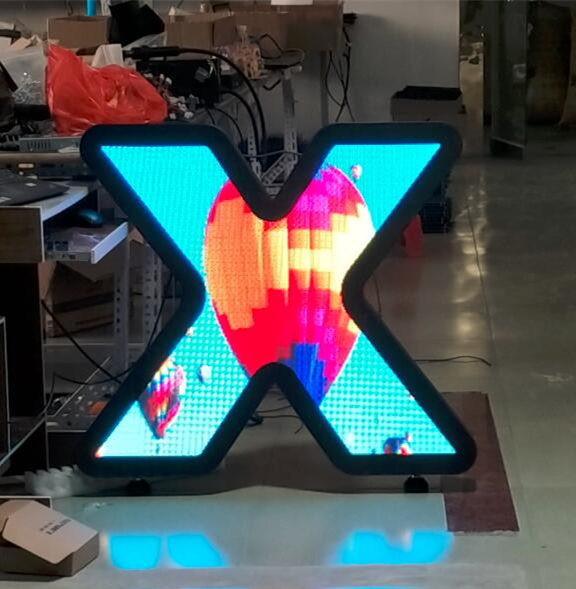

Custom LED display is commonly used for chain stores, airports, exhibitions, hotels or for the 3D digital shows in clubs, shows, etc. It creates a different visual effect. You have a variety of sizes to choose from. Multi-sided screen, 4 or 5 sided screen. HD performance for both effects and dynamic video presentations.
Technical parameters
| Specification | p4 indoor soft module |
| Pixel pitch (mm) | 4mm |
| Pixel density (dots/m2) | 62500 |
| LED Configuration | SMD3 in 1 |
| LED type | SMD2121 |
| Brightness(cd/n2) | 1000-1500 |
| Brightness (cd/n2) | 24s |
| Drive IC | MBI5124 |
| Grayscale | 16 bit |
| Refresh Rate (HZ) | 1920hz |
| Frame rate (HZ) | 60 |
| Brightness adjustment | manual/automatic/remote control |
| Color temperature | 9000±500k |
| Best viewing distance | ≥4.0m |
| Cabinet dimension | Randomly splicing |
| Working voltage | AC 110V-220V |
| Average Power Consumption (w/m2) | 260 |
| Max. Power consumption (w/m2) | 600 |
| Service access | Front and rear |
| Working environment (℃/% RH) | -20 ~ 60 ℃ / 10 ~ 90% RH non-condensing |
| Storage environment (℃/%RH) | -40 ~ 80 ℃ / 10 ~ 90% relative humidity |
| Supported standard | CCC,CE |
